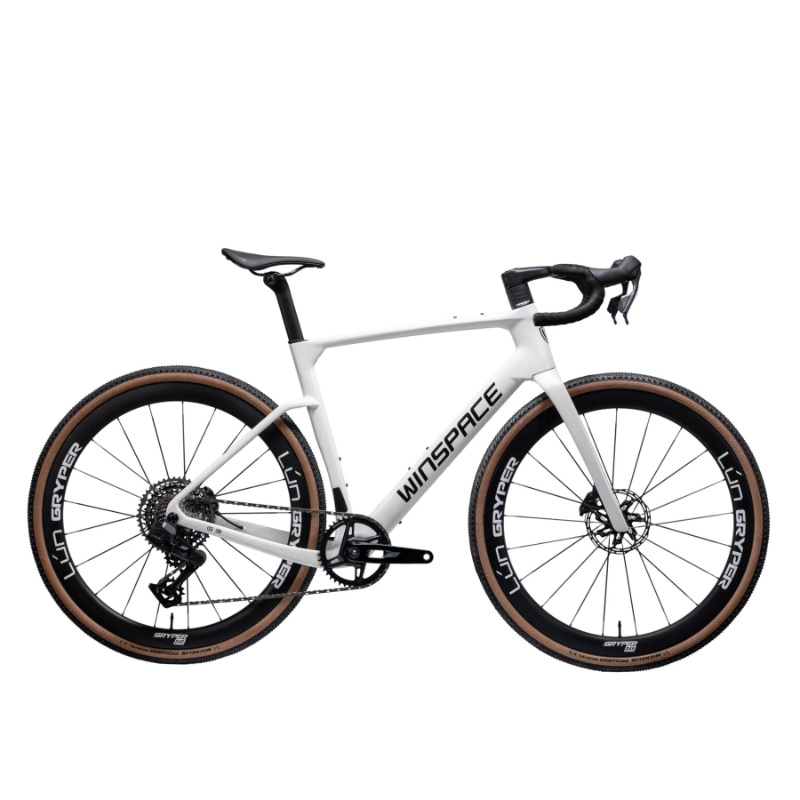

WINSPACE G3 Bike
Build Bike Specs:
Your new bike arrives 90% assembled (components not as pictured - to be announced shortly) .
Built on the groundbreaking G3 platform, this complete gravel bike blends aerodynamic speed with all-terrain confidence. Every detail—from the integrated cockpit to the carbon wheelset—is optimized for precision handling and race-level performance. The G3 Complete redefines modern gravel with the perfect mix of stiffness, stability, and comfort.
In addition to the pre-assembled frameset and components, the accessory box includes the following items for final installation:
Built on the groundbreaking G3 platform, this complete gravel bike blends aerodynamic speed with all-terrain confidence. Every detail—from the integrated cockpit to the carbon wheelset—is optimized for precision handling and race-level performance. The G3 Complete redefines modern gravel with the perfect mix of stiffness, stability, and comfort.
In addition to the pre-assembled frameset and components, the accessory box includes the following items for final installation:
- Saddle
- Seatpost
- Seatpost Wedge
- Steel Rail Saddle Clamp
- Computer Mount Kit
- Spare Derailleur Hanger (one is pre-installed)
- Seatpost Dust Cover
- Water Bottle Cage Bolts (x4)
- Assembly Tool Kit
- Pedals
Frame Specs:
Sizes Available: 440(XS) / 460(SM) / 480(MD) / 510(LG) / 540(XL)
Colors: Pearl White / Lunar Gray / Pink Clay / Carbon Black
Carbon Fiber Grade: T700 + T800 + M40
Bottom Bracket (BB): T47-68
Seatpost: Aero
Brake Type: Flat Mount Disc Brake
Axle Spacing : Front: 100mm, Rear: 142mm
Thru-Axle Dimensions:
Front: M12P1.0114L
Rear: M12P1.0163L
Max Tire Clearance: 700x50C
Headset: 1-1/2" / 1-1/2" (FSA ACR system)
Cable Routing: Internal
Raw Weight (approximate): Frame (M size): 950g, Fork: 450g, 360mm Seatpost: 130g
Finish: UD
Derailleur Hanger: UDH
